HOME > Product > SPI Lighting SPI Lighting
DESCRIPTION:

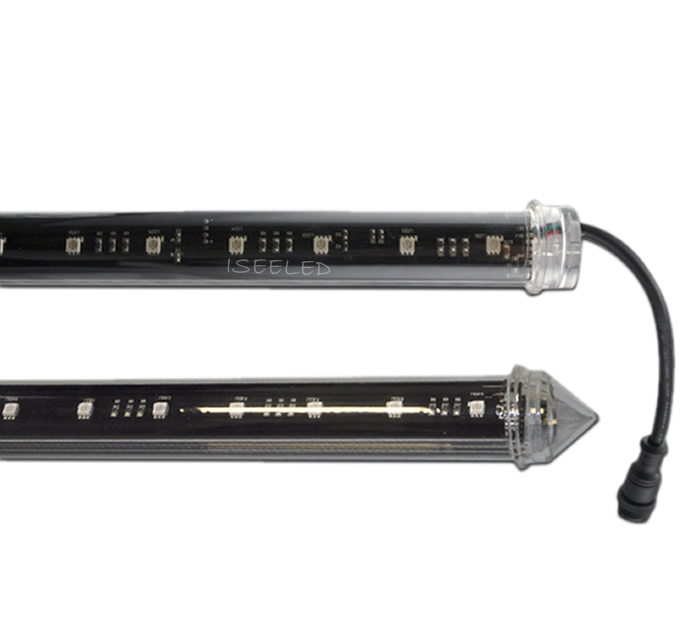

SPI 3D LED Tube

1. Dimension: 0.5m, 1m, 1.5m, 2m length

2. 8W, 15W, 22W, 30W for different length, DC 15V input

3. Clear PC cover giving 360° viewing

4. IP65 waterproof with good design of the housing

5. SPI IC control, 3D pixel mapping to set on the software programming

6. Protections: short circuit, over current , over temperature

7. With working life-span at least 50,000hrs

8. Easy control with Iseeled DMX SD card control or Online Lightning 12/30 and DMX DVI LED control

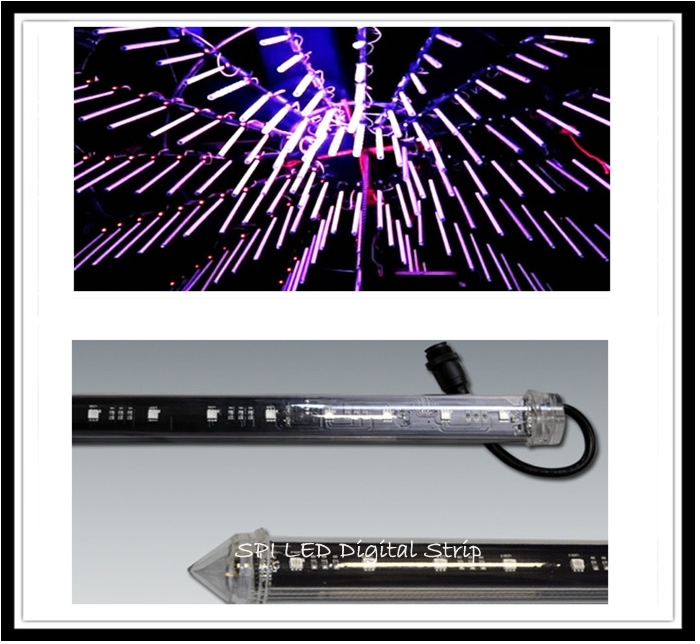

Application: 3D Vision figure, Interior design for clubs, museums,
themed environments, Stage video elements for intimate or large concert productions, Television awards and game shows, Video Art projects

  • Parameters

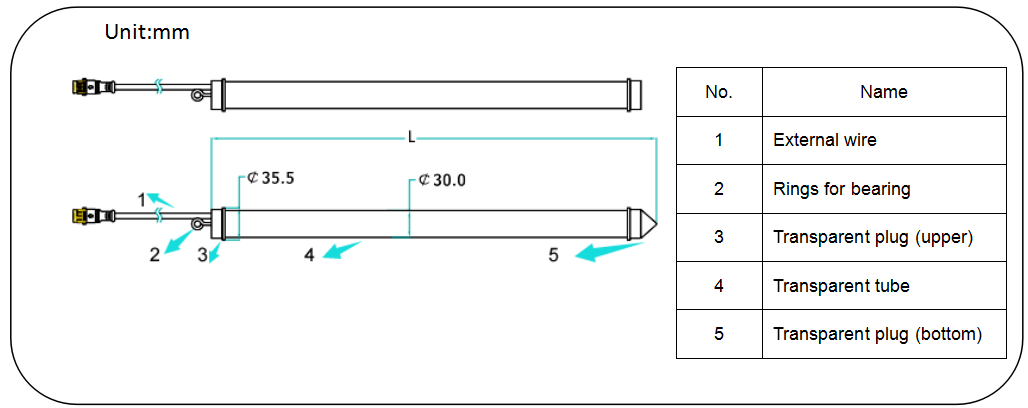

  • Dimension

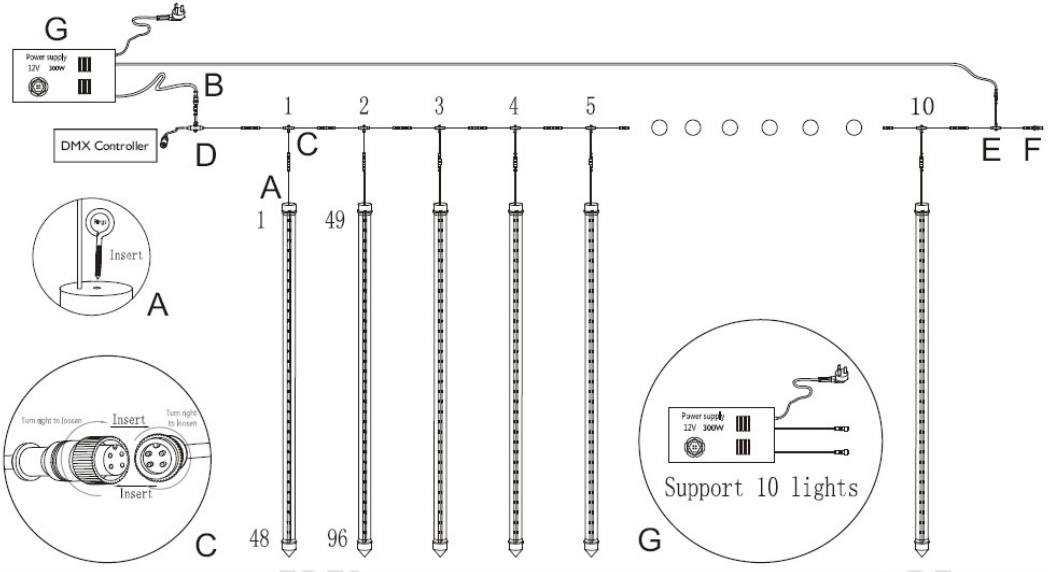

  • Diagram
  • Datasheet

Model NO.

LED-3DT15SPI3208

LED-3DT15SPI6416

LED-3DT15SPI9624

LED-3DT15SPI12832

Diameter

15mm

15mm

15mm

15mm

Length

500mm

1000mm

1500mm

2000mm

Color

SMD RGB 5050

LED QTY

32LEDs

64LEDs

96LEDs

128LEDs

Pixel QTY

8 pixels

16 pixels

24 pixels

32 pixels

Control Protocol

SPI

Operating Voltage

DC15V

DC15V

DC15V

DC15V

Max Power

MAX=8W

MAX=15W

MAX=24W

MAX=30W

LED Source Life

50,000hours,based on LED manufacturers’ test data

Housing

Clear cover

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Humidity Range

0 to 95% non-condensing

Protection

IP65

Net Weight

0.122kg/pc

0.244kg/pc

0.345kg/pc

0.467kg/pc
