HOME > Product > LED Controller LED Controller
DESCRIPTION:

PWM DMX LED Decoder

1. 3PWM/4PWM/6PWM/24PWM/SPI led decoder available

2. Input RJ45 & XLR 3 pin male, output RJ45 & XLR 3 pin female

3. 0-100% dimming, 1024 gray level, 500Hz frequency

4. Each 20 pcs DMX Decoder need a DMX signal amplifier

5. Protections: short circuit, over current, over temperature


Application: adapted for all kinds of led lighting control by

PWM DMX/ SPI DMX protocol

  • Parameters
  • Dimension
  • Diagram
  • Datasheet

Model

LED-D3PWM

LED-D4PWM

LED-D6PWM

LED-D24PWM

Input Voltage

DC5V or DC 6-24V

DC 6-24V

DC 6-24V

DC 7.5-24V

Control

3CH x 4A

4CH x 6A

6CH x 6A

24CH x 5A

Working

Temperature

-20C°--75C°

-20C°--75C°

-20C°--75C°

-20C°--75C°

Protection

IP40

IP40

IP40

IP40

Dimension

L165 x W67 x H42mm

L156 x W78 x H40(mm)

L127 x W40 x H52mm

L262 x W130 x H45mm

Net Weight

0.8kg

0.5kg

0.4kg

0.8kg

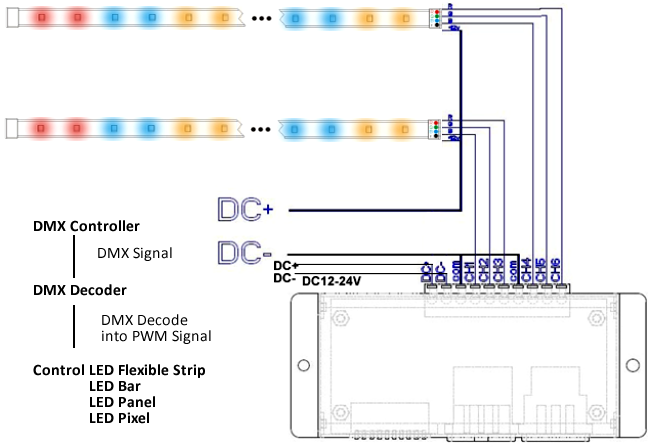

6CH DMX PWM Decoder Wiring



4CH DMX Decoder Wiring
