DESCRIPTION:

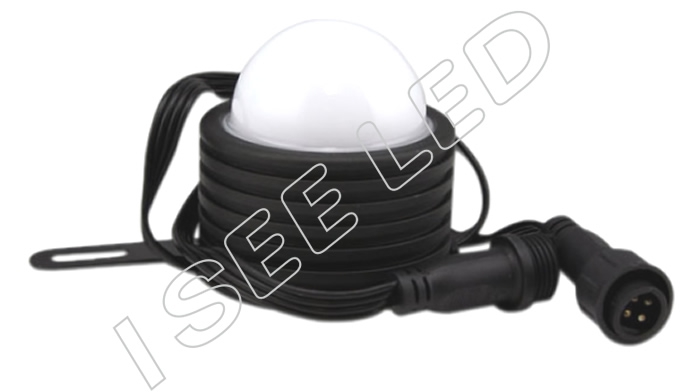

3D LED Ball

1.ɸ50mm and ɸ40mm LED Ball, opaque Milky/Clear/Icy/Silver/Gold giving 360° viewing

2.Standard DMX 512 control, manual addressing .Customized pitch with customized ball QTY/String

3.High Brightness and long service life LED, 4 leds in one LED ball

4.Protections: short circuit, over current , over temperature.

5.With working life-span at least 50,000hrs;

6.Easy to install, Max Length 5M/ string


Application: adapted for all kinds of installation methods including, stage, club, concert and so on.

  • Parameters
  • Dimension
  • Diagram
  • Datasheet

Model NO.

LED-3DB50DMX0401

LED-3DB40DMX0401

Housing Diameter

50mm

40mm

LED type

SMD RGB 5050

SMD RGB 3535

LED QTY

4 Leds

4 Leds

Emitting angle

360 degrees

360 degrees

Color

RGB full color

RGB full color

Gray Scale

256

256

Operating Voltage

DC 15V

Power

MAX=1W

Control Protocol

DMX512

Control Mode

DMX Artnet / DMX DVI / Standalone Control

Housing Color

Frosted/Clear/Sliver/Golden/Icy

Protection

IP 54/ IP65

LED Source Life

50,000 hours, based on test data of LED manufacturer

Note

Pitch and Qty for each string can be customized
