HOME > Product > DMX Lighting DMX Lighting
DESCRIPTION:

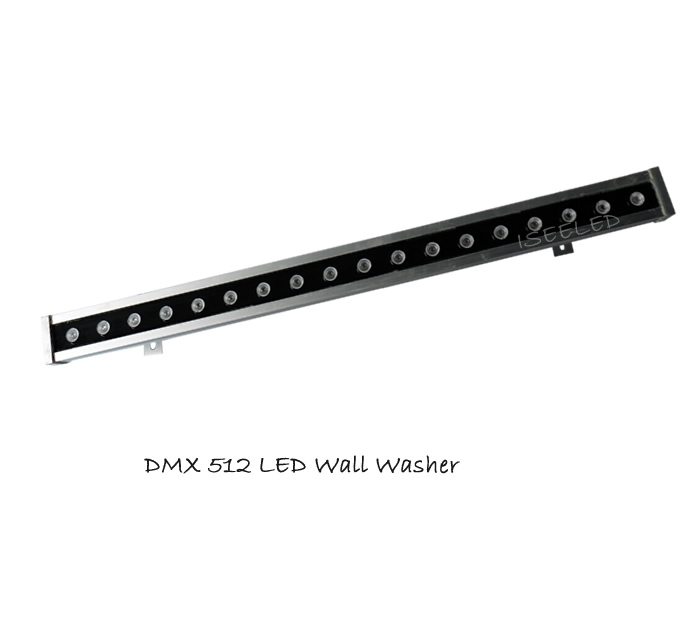

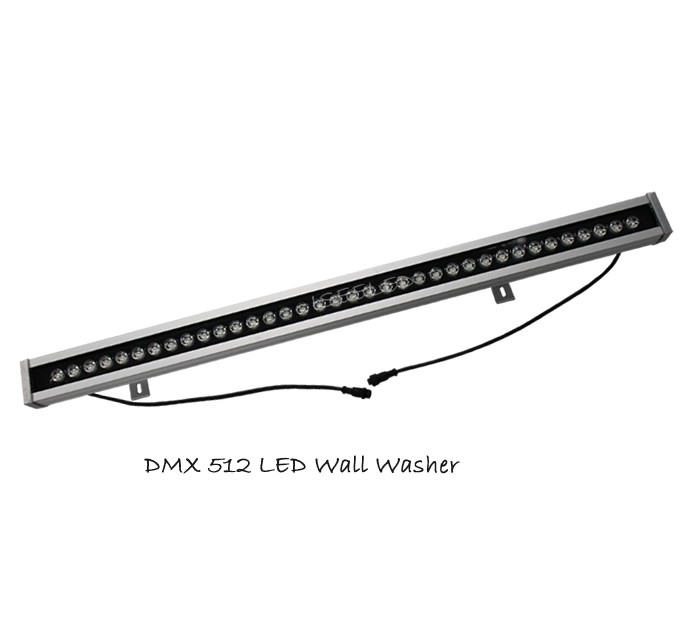

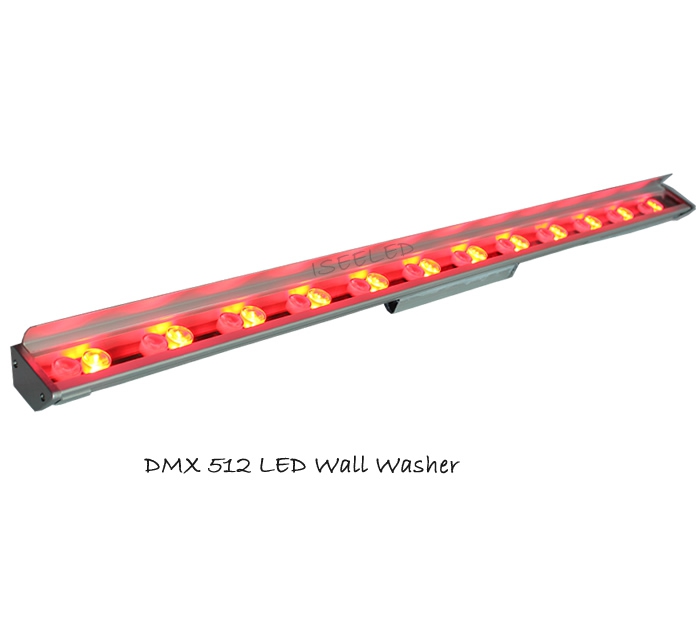

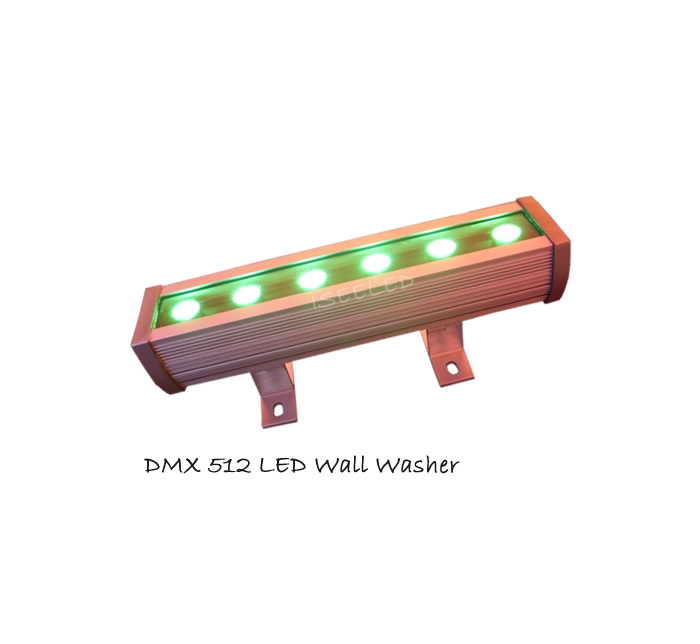

IP65 LED Wall Washer

1. Tight waterproof structure

2. International standard DMX 512 Control

3. Optional on Optic Lens

4. Detachable bracket for easy installation and adjustable the wall washer angle

5. Use 3W power LED, high efficient heat conductivity to ensure long lifespan

6. DMX 512 dimming with constant current driver

7. RGB/RGBW dimming available

Application: adapted for all kinds of led lighting control with dmx 512 protocol way.

  • Parameters
  • Dimension
  • Diagram
  • Datasheet

Model

LED-WW5525-

24V3601RGB

LED-WW6269-

24V3601RGB

LED-WW8466-

24V2401RGB

LED-WW7267-

24V3601RGB

Dimension

1012mm*55*25mm

1019mm*62*69mm

1019mm*84*66mm

1000mm*72*67mm

Input Voltage

24V DC

24V DC

24V DC

24V DC

Power

36W

36W

72W

36W

LED QTY

36

36

24

36

LED

Cree LED/ Everlight 1W-3W LED

Edison 3W RGB LED

Cree LED

DMX Driver

DMX 512 high power constant current driver

Dimming

DMX 512

Pixel

1

DMX Channel

3CH

Housing Material

Aluminum

Diffuser

Clear Tempered Glass

PC

Temperature

-40℃-+60℃

Color Range

RGB/Red/Green/Blue/Amber/Pink/White/Warm white

LED Lens

16°, 30°, 45°, 60°, 20°*40°, 10°*45°, 10°*80°, 20°*60°

Protection

IP65

IP68

Weight

2KG

4.5KG

5KG

5KG

5525 type




6269 type


8466 type



7267 type
