HOME > Product > DMX Lighting DMX Lighting
DESCRIPTION:

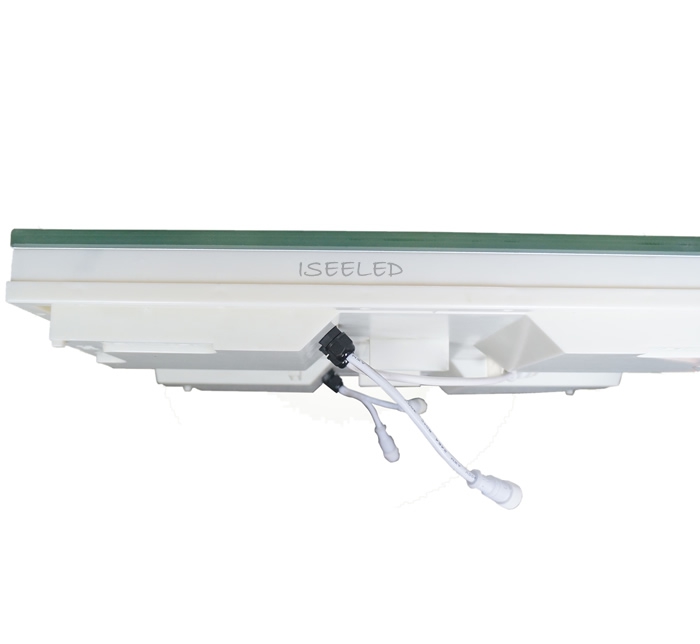

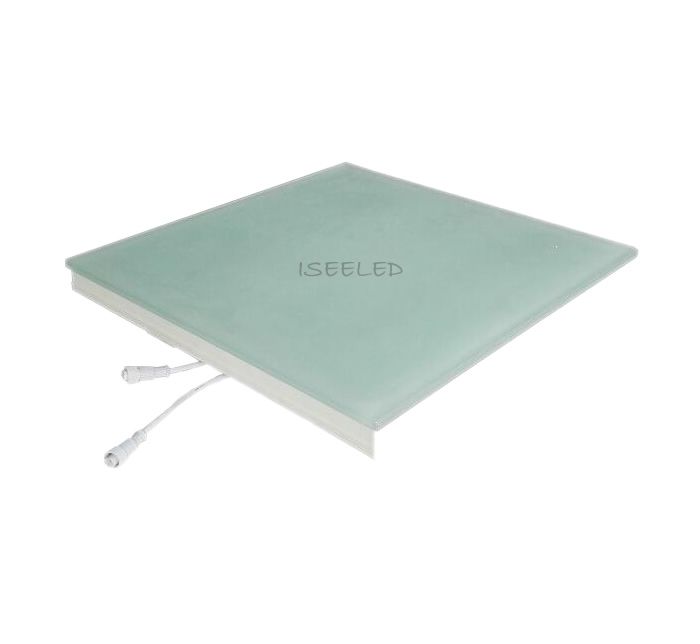

DMX LED Dance Floor

1. Dimension: 500*500mm led dance floor

2. 1 pixel, 16 pixel, 64 pixel each dmx led dance floor, high manifestation and visual impact

3. Standard DMX 512 control, 44frames/second, manual or auto-addressing customized

4. 2D pixel mapping to set on the software programming

5. Protections: short circuit, over current , over temperature .

6. With working life-span at least 50,000hrs;

7. Fast get through input/output signal;

8. Support adjustable color temperature within 2,500k-10,000k ;

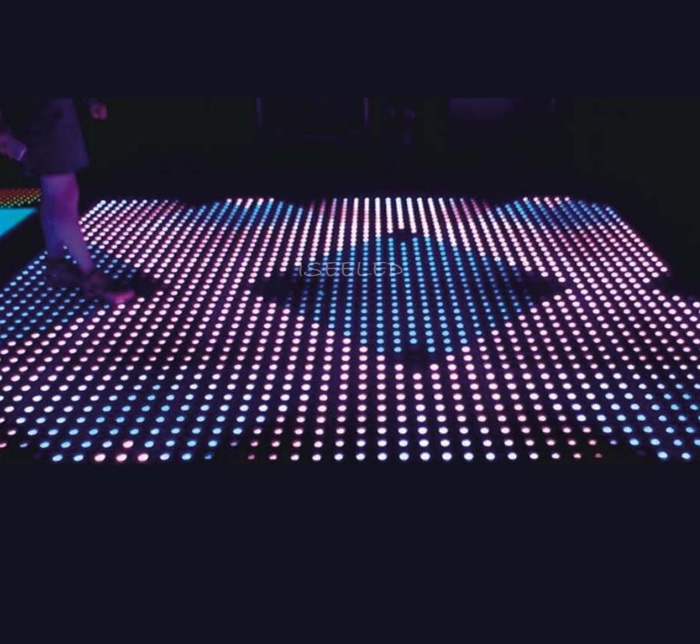

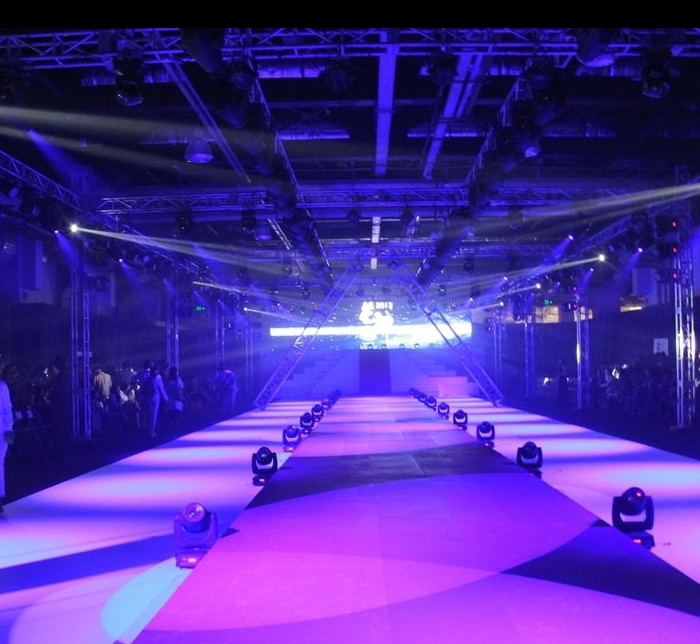

Application: adapted for all kinds of installation methods including, stage, club, party and entertainment lighting

  • Parameters

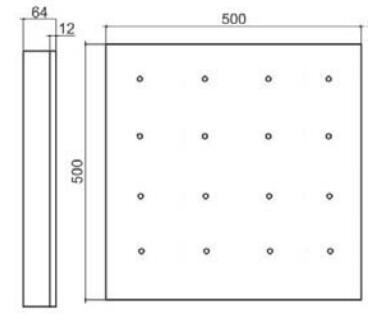

  • Dimension

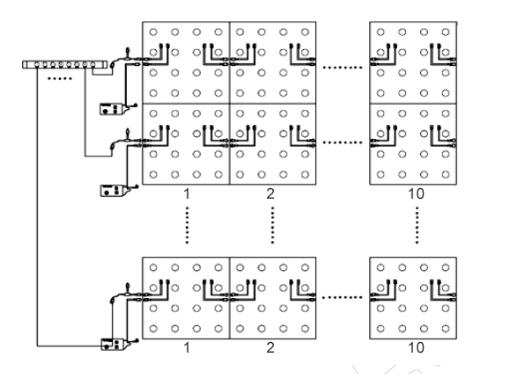

  • Diagram
  • Datasheet

Model NO.

LED-DF500DMX6464

LED-DF500DMX4816

LED-DF500DMX6401

LED type and QTY

64 pcs SMD RGB 5050

48 pcs SMD RGB 5050

64 pcs SMD RGB 5050

Pixles

64 pixels

16 pixels

1 pixels

Emitting angle

120 degrees

120 degrees

120 degrees

Color

RGB full color

RGB full color

RGB full color

Gray Scale

256

256

256

Operating Voltage

DC 12V

DC 12V

DC 12V

Power

24W

12W

24W

Dimension (housing)

500*500*70mm

500*500*70mm

500*500*70mm

Control Protocol

DMX512

Control Mode

DMX Artnet / DMX DVI / Standalone Control

Housing

Tempered glass cover, aluminum base

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4 to 122(-20 to 50) operating temperature

Humidity Range

0 to 95% non-condensing

Protection

IP42
