DESCRIPTION:

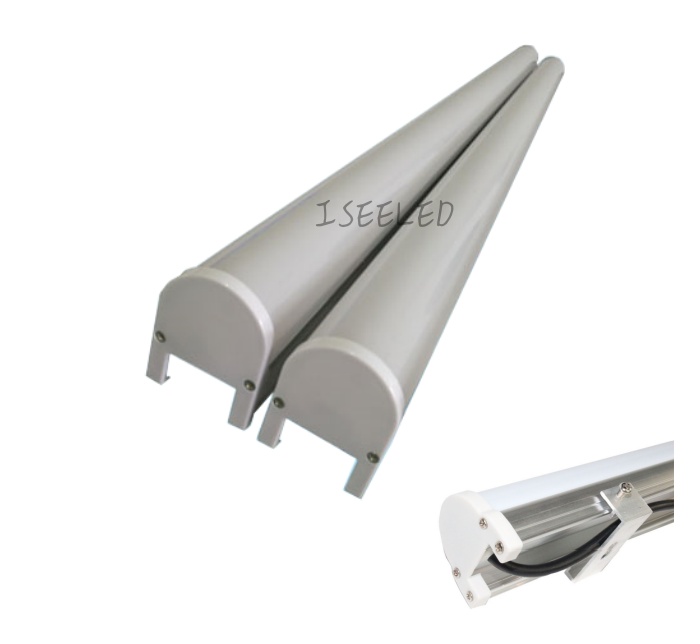

DMX LED Linear Tube 5664


1. Aluminum housing base in silver / customized color

2. Clear / milky / stripe PC diffuser

3. Cable come out from side or bottom

4. IP65 wateproof

5. Standard DMX 512 control, max 44frames/second

6. 1led/pix, 2led/pix, 3led/pixl, 6led/pix or customized

7. Hot plug

  • Parameters

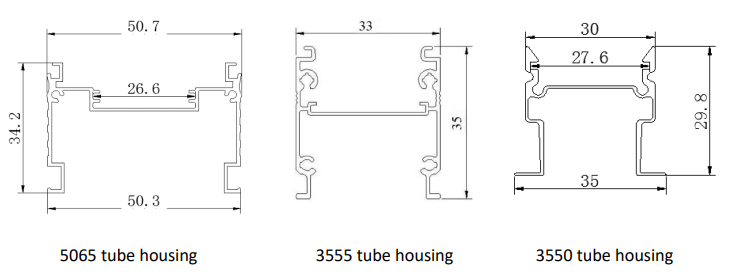

  • Dimension

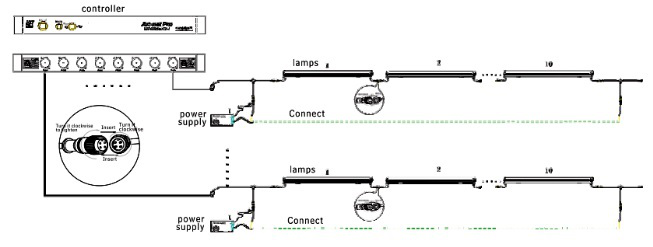

  • Diagram
  • Datasheet

Model NO.

LED-LT5664DMX3216

LED-LT5664DMX1608

LED-LT5664DMX4816

LED-LT5664DMX2408

Dimension

1000x56x64mm

500x56x64mm

1000x56x64mm

500x56x64mm

LED type and QTY

32 pcs SMD RGB 5050

16 pcs SMD RGB 5050

48 pcs SMD RGB 5050

24 pcs SMD RGB 5050

Pixel QTY

16 PIX

8 PIX

16 PIX

8 PIX

Emitting angle

120 degree

120 degree

120 degree

120 degree

Color

RGB full color

RGB full color

RGB full color

RGB full color

Operating Voltage

DC 12V

DC 12V

DC 12V

DC 12V

Power

MAX=12W

MAX=6W

MAX=12W

MAX=6W

Control Protocol

DMX512

Address Setting

Automatically / Manually

Control Mode

DMX Artnet / DMX DVI / Standalone Control

Material

Aluminum housing + PC diffuser

Housing Color

Silver, White or Black

Diffuser Color

Milky / Clear Stripe / Clear diffuser

Protection

IP65

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Humidity Range

0 to 95% non-condensing
