DESCRIPTION:

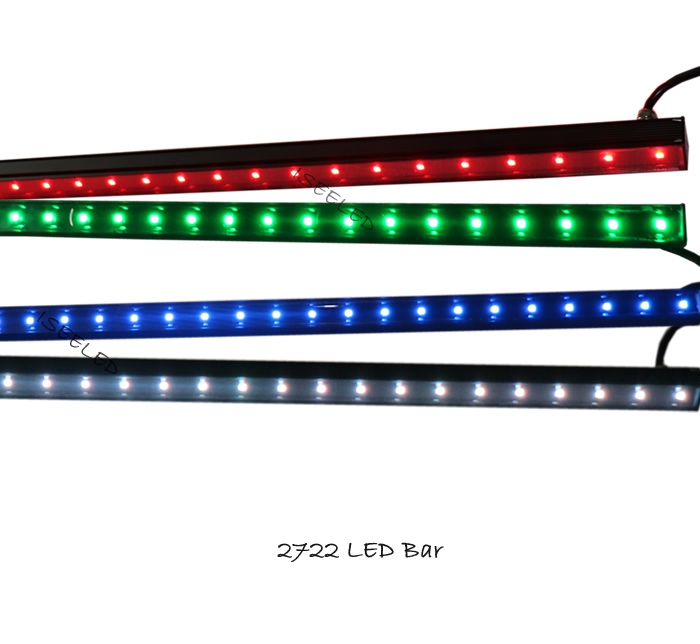

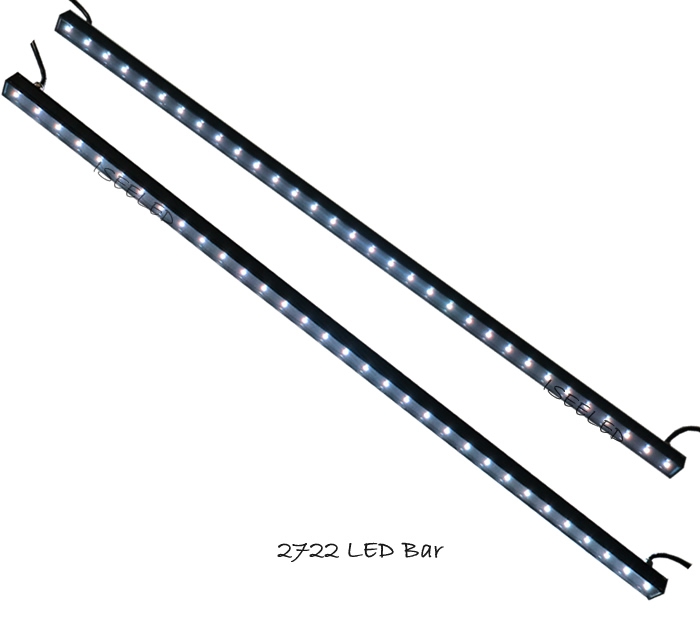

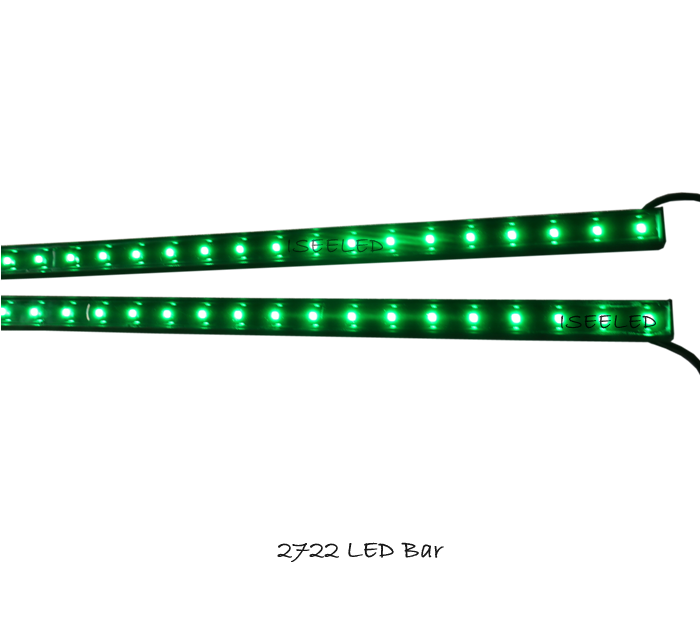

DMX LED Linear Bar 2726

1. Aluminum housing in black / customized color

2. Clear / milky / frosted / mirror PC cover

3. Cable come out from bottom / side

4. IP65

5. Standard DMX 512 control, max 44frames/second

6. 1led/pix, 2led/pix, 3led/pixl, 6led/pix or customized

7. manual or auto address setting

8. Hot plug

Application:Decoration for club, event stage, TV show, architecture and others

Model NO.	LED-LB2722DMX3216	LED-LB2722DMX1608	LED-LB2722DMX4816	LED-LB2722DMX2408

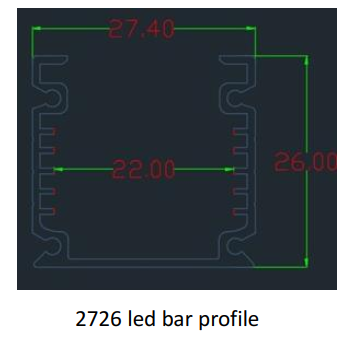

Dimension	1000x27.8x22.8mm	500x27.8x22.8mm	1000x27.8x22.8mm	500x27.8x22.8mm
LED type and QTY	32 pcs SMD RGB 5050	16 pcs SMD RGB 5050	48 pcs SMD RGB 5050	24 pcs SMD RGB 5050
Pixel QTY	16 PIX	8 PIX	16 PIX	8 PIX
Emitting angle	120 degree	120 degree	120 degree	120 degree
Color	■■■ RGB full color	■■■ RGB full color	■■■ RGB full color	■■■ RGB full color
Operating Voltage	DC 12V	DC 12V	DC 12V	DC 12V
Power	MAX=12W	MAX=6W	MAX=12W	MAX=6W
Control Protocol	DMX512
Address Setting	Automatically / Manually
Control Mode	DMX Artnet / DMX DVI / Standalone Control
Material	Aluminum housing + PC cover
Housing Color	Black or customized color
Cover Color	Clear / milky / frosted / mirror cover
Protection	IP65
LED Source Life	50,000 hours, based on test data of LED manufacturer
Temperature	-4℉ to 122℉(-20℃ to 50℃) operating temperature
Humidity Range	0 to 95% non-condensing
