HOME > Product > SPI Lighting SPI Lighting
DESCRIPTION:

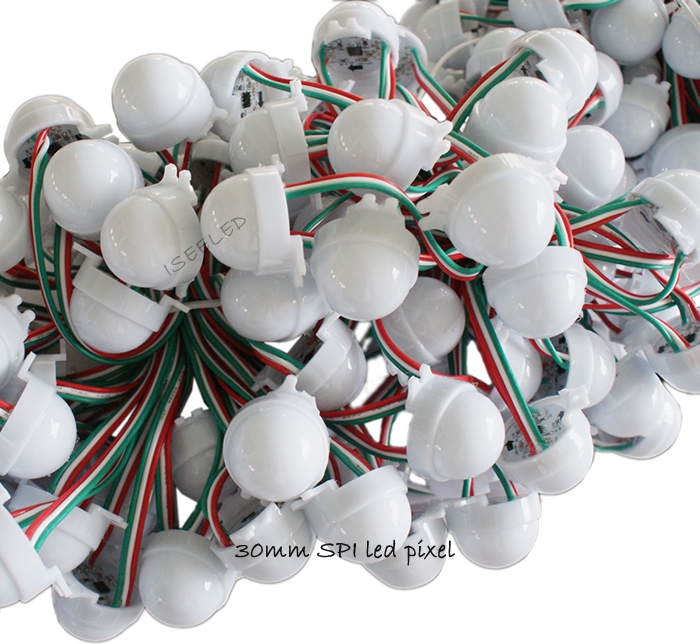

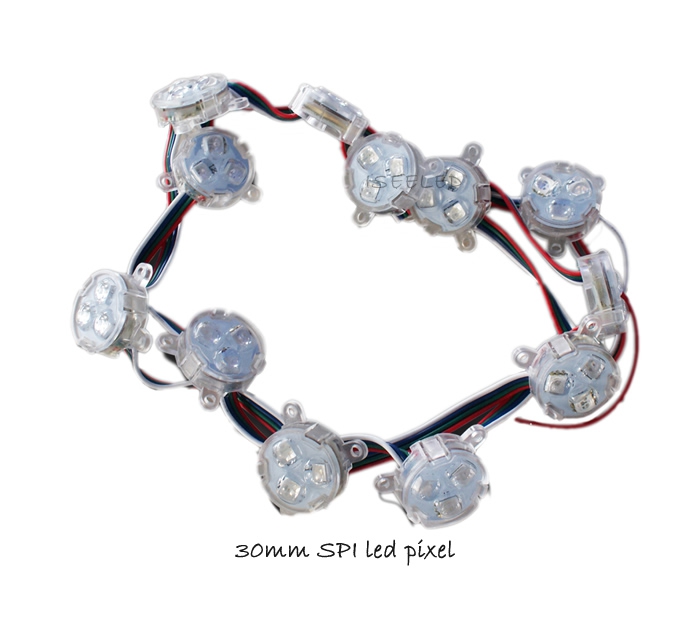

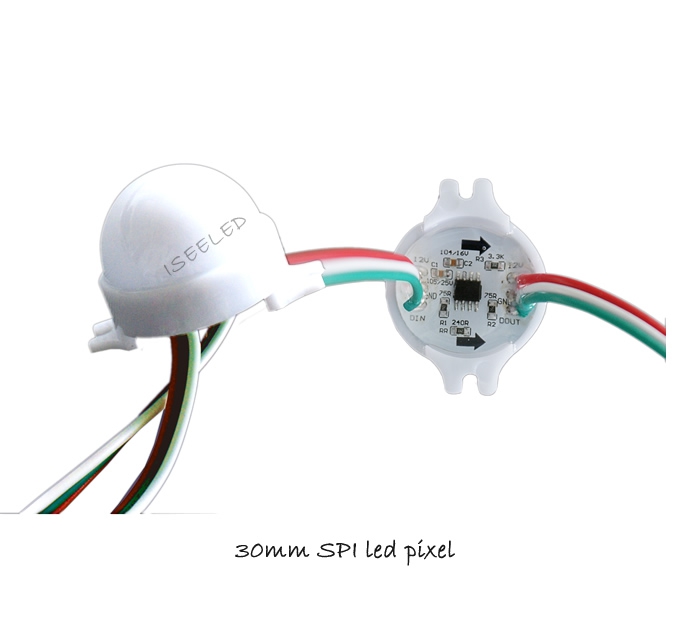

30mm LED Module

1. Dimension: 30mm

2. input Voltage: DC 12V

3. Power: 0.72W

4. 20 modules / string with standard 15cm pitch

5. Milky cover and clear cover are available

6. The module controllable by 2811/2801 LED controller

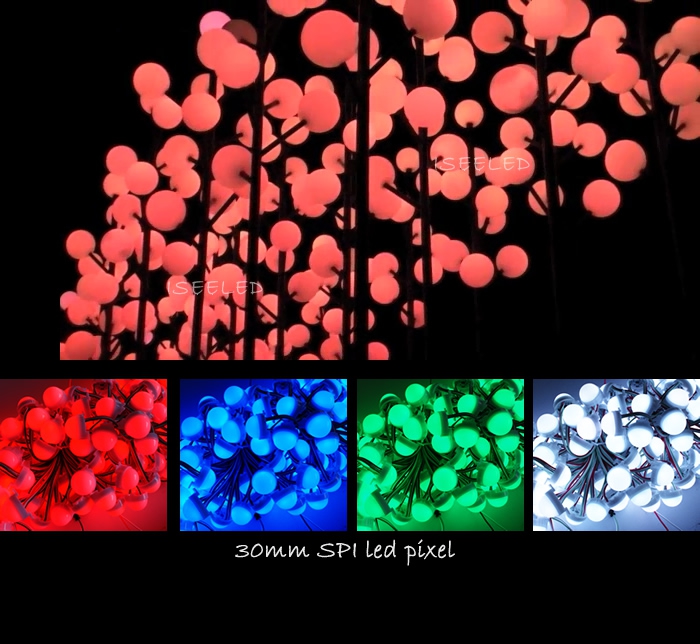

Application: Outline profile decoration, Interior design for clubs, museums,

themed environments,Stage video elements for intimate or

large concert productions,Television awards and game shows, Video Art projects



  • Parameters
  • Dimension

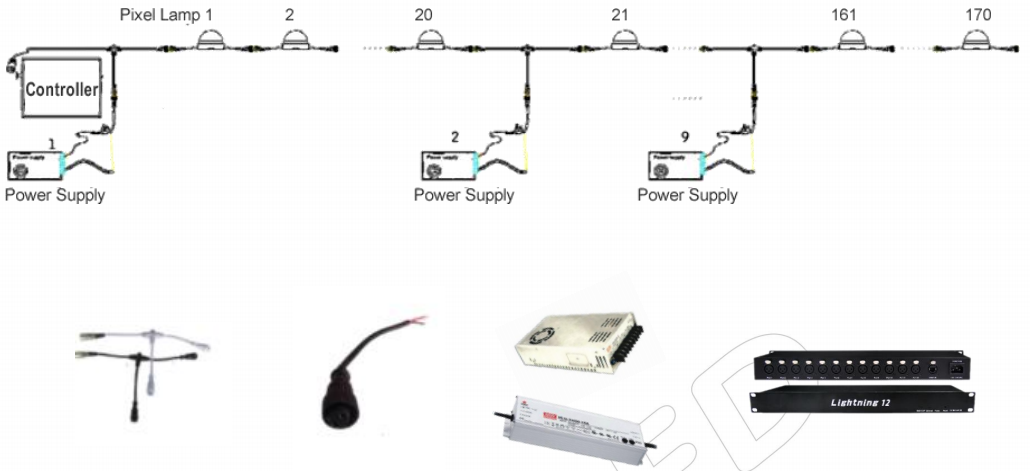

  • Diagram
  • Datasheet

Model NO.

LED-PL30SPI28110301

LED-PL30SPI28010301

LED-PL30SPI28210301

LED type and QTY

3pcs smd rgb 5050

3pcs smd rgb 5050

3pcs smd rgb 5050

Emitting angle

120 degrees

120 degrees

120 degrees

Pixels/ string

20 pcs / string

20 pcs / string

20 pcs / string

Color

RGB full color

RGB full color

RGB full color

Operating Voltage

DC 12V

DC 12V

DC 12V

Max Power

MAX=0.72W

MAX=0.72W

MAX=0.72W

Control Protocol

WS2811

WS2801

DMX512

Dimension (housing)

30 MM Diameter

30 MM Diameter

30 MM Diameter

Housing Material

PC

PC

PC

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Humidity Range

0 to 95% non-condensing

Protection

IP65

Installation

M3*25mm screw with 29mm length expansion bolts

Note

pitch and module QTY for each string can be customized
