HOME > Product > DMX Lighting DMX Lighting
DESCRIPTION:

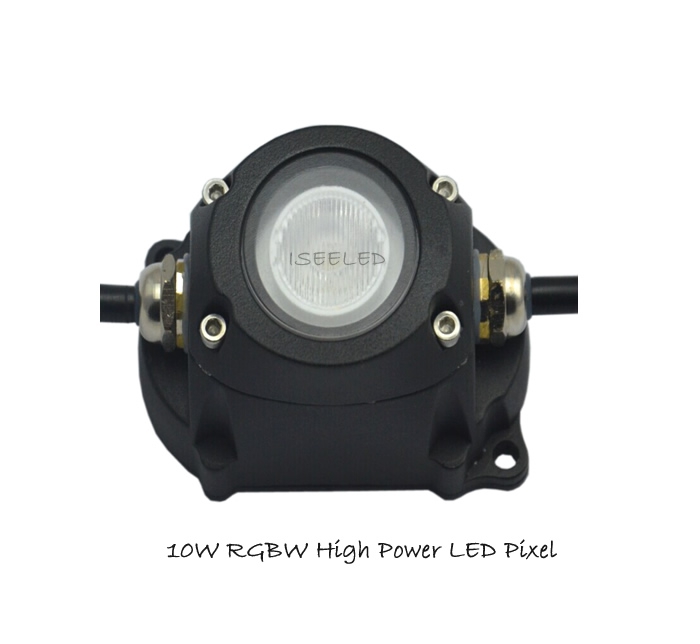

DMX High Power Pixel Light

1.High Power 1-4W cree LED/Helio LED is assembled in the High Power led pixel light

2.Size 64mm, 80mm , 78mm available

3.Flexible powerful led string for surface of  building

4.Standard DMX 512 control, 44frames/second

5.DMX address can be set manually , automatically or customized

6.Protections: short circuit, over current , over temperature

7.With working life-span at least 50,000hrs


Application:  Outline profile decoration, Interior design for clubs, etc



  • Parameters
  • Dimension
  • Diagram
  • Datasheet

Model NO.

LED-HP80DMX0101

LED-HP64DMX0101

LED-HP64DMX0101

LED-HP78DMX0101

LED type and QTY

3W High Power RGB in one LED

3W High Power RGB in one LED

4W High Power RGBW in one LED

4W High Power RGBW in one LED

Emitting angle

70degree

120 degree

10*75 degree/ 120 degree

10*75 degree

Color

RGB full color

RGB full color

RGB full color

RGB full color

Operating Voltage

DC 12V

DC 12V

DC 24V

DC12- 24V

Power

MAX=3W

MAX=3W

MAX=4W

MAX=4W

Control Protocol

DMX512

Control Mode

DMX Artnet / DMX DVI / Standalone Control

Dimension (housing)

80MM diameter

64MM diameter

64MM diameter

78MM diameter

Housing Material

Aluminum

Aluminum

Aluminum

Aluminum

LED Source Life

50,000 hours, based on test data of LED manufacturer

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Humidity Range

0 to 95% non-condensing

Protection

IP65

IP65

IP65

IP65
