DESCRIPTION:

LED Underwater Light

1. Dimension: diameter 160mm and 180mm

2. Housing: Die-casting Aluminum

3. DMX address can be set manual or auto-addressing customized

4. Superior waterproof performance IP68

5. DC24V

6. Standard DMX512 control

7. Fast get through input/output signal

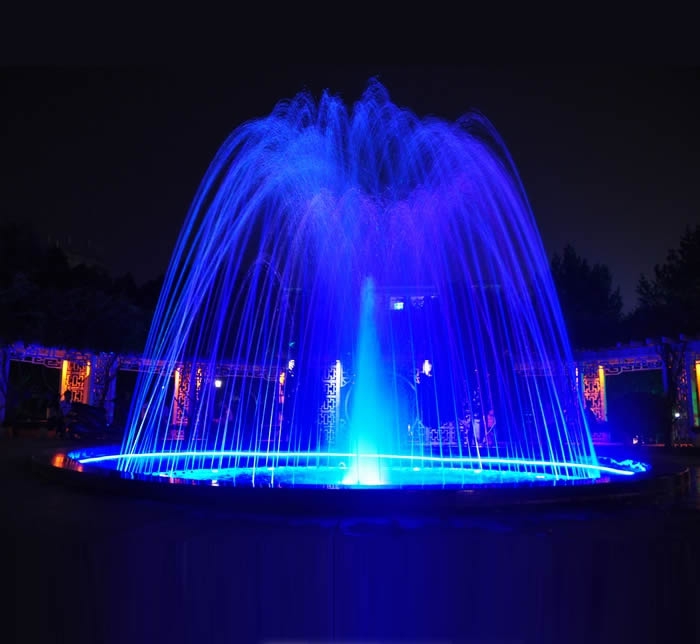

Application: Swimming pool, fountain, etc.

  • Parameters

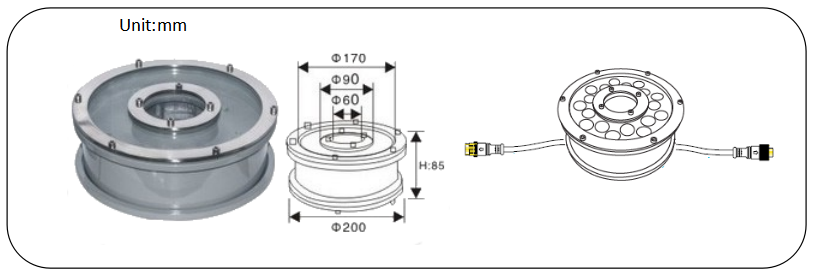

  • Dimension

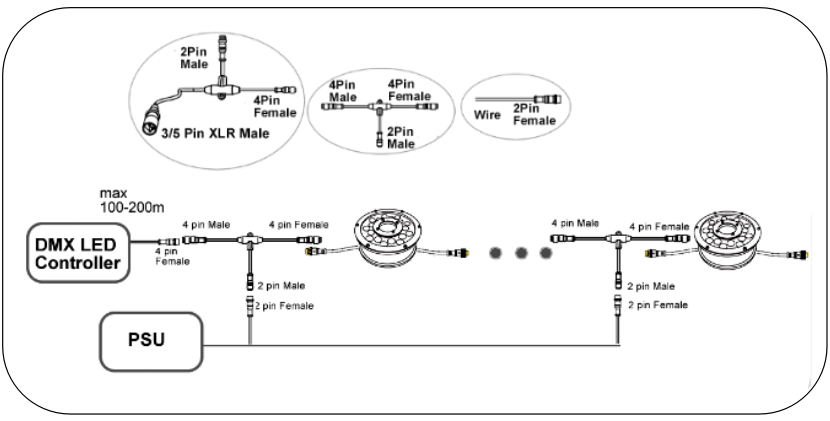

  • Diagram
  • Datasheet

Model NO.

LED-UW148DMX1201

LED-UW180DMX1801

Material

Die-casting Aluminum

Dimension

160mm*93mm

180mm*93mm

Max Power

MAX=12W

MAX=18W

Working Voltage

DC24V

DC24V

LED type and QTY

12 pcs SMD RGB 5050

18 pcs SMD RGB 5050

Color

RGB full color

RGB full color

Beam Angle

8, 16, 25, 30, 45, 60

Address setting

Automatically/Maually

Control Protocol

DMX512

DMX512

Lifespan

50,000 hours, based on test data of LED manufacturer

Protection

IP68

Operating temperature

-20℃ to 50℃ operating temperature

storage temperature

-40℃ to 80℃ storage temperature

Weight

2.6kg/pcs

3.1kg/pcs

Packing

170*170*100mm(1pcs)

190*190*100mm(1pcs)

Installation

Can not be used in the water which have a very strong corroding effect on metals or seawater

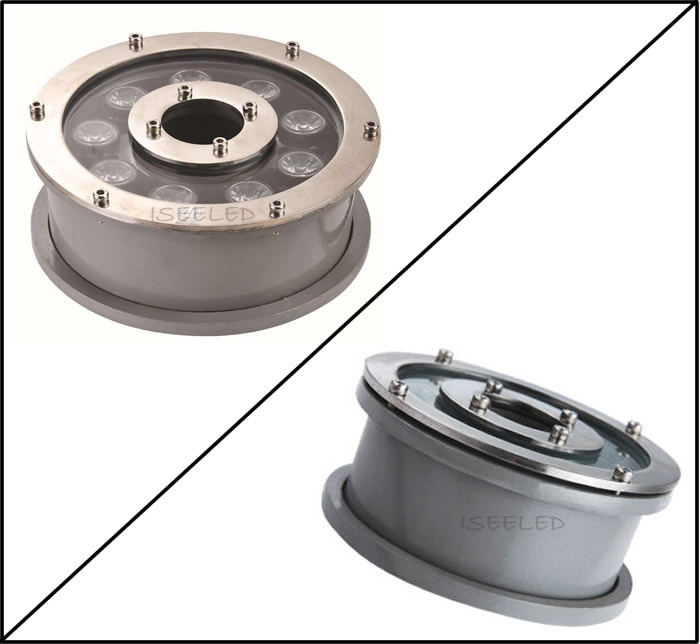

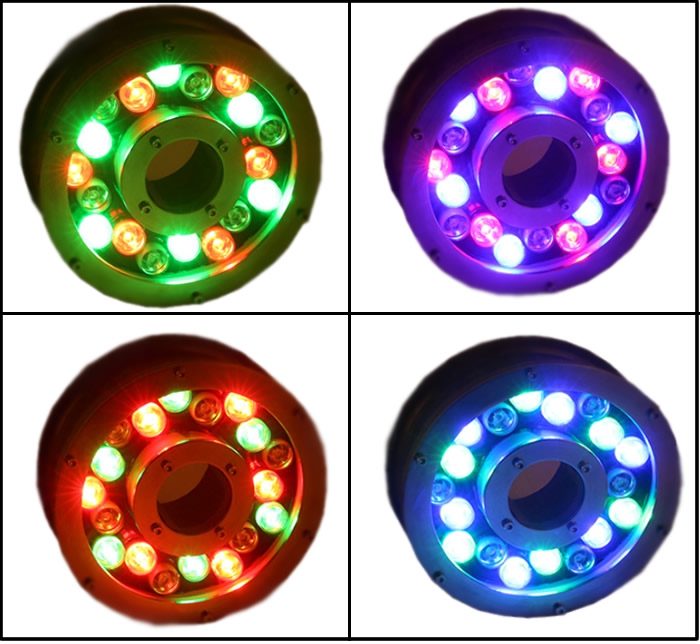

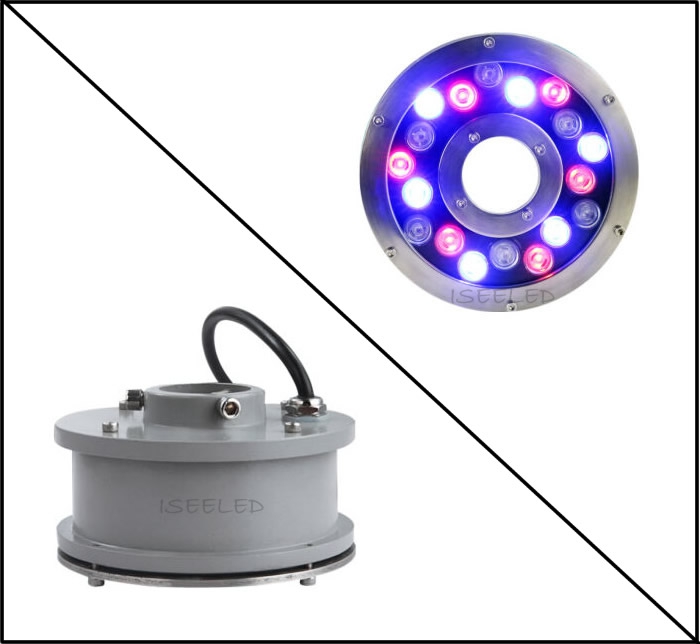

LED Underwater Light

LED Underwater Light
