DESCRIPTION:

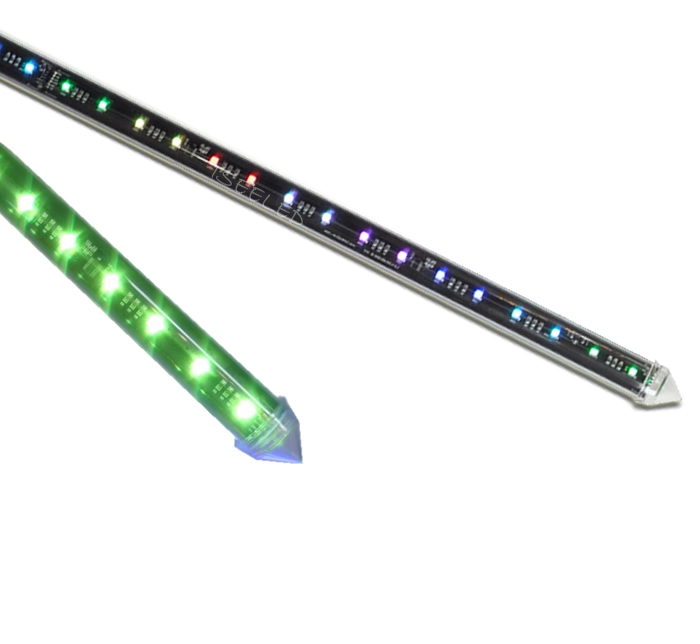

DMX 3D Tube

1. Dimension: 0.5m, 1m, 1.5m, 2m length

2. Clear PC cover giving 360° viewing

3. Standard DMX 512 control, 44frames/second, manual or auto-addressing customized

4. 3D pixel mapping to set on the software programming

5. Protections: short circuit, over current , over temperature

6. With working life-span at least 50,000hrs

7. IP65 waterproof with good design of the housing

Application: 3D Vision figure, Interior design for clubs, museums,
themed environments, Stage video elements for intimate or
large concert productions, Television awards and game shows, Video Art projects

  • Parameters

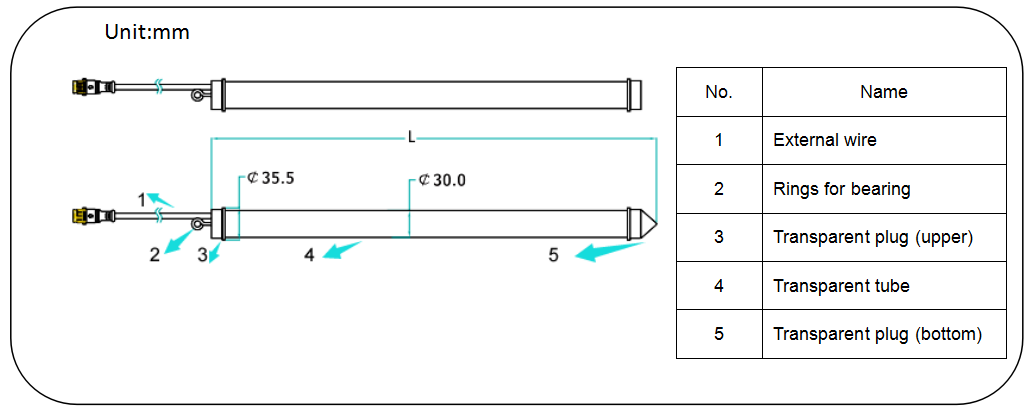

  • Dimension
  • Diagram
  • Datasheet

Model NO.

LED-3DT30DMX3208

LED-3DT30DMX6416

LED-3DT30DMX9624

LED-3DT30DMX12832

Diameter

30mm

30mm

30mm

30mm

Length

500mm

1000mm

1500mm

2000mm

Color

SMD RGB 5050

LED QTY

32LEDs

64LEDs

96LEDs

128LEDs

Pixel QTY

8 Pixels

16 Pixels

24 Pixels

32 Pixels

Tube Qty/Universe

20 Tubes

10 Tubes

7 Tubes

5 Tubes

Operating Voltage

DC15V

DC15V

DC15V

DC15V

Max Power

MAX=8W

MAX=16W

MAX=24W

MAX=32W

Control Protocol

DMX512

DMX512

DMX512

DMX512

Address Setting

Manually

LED Source Life

50,000hours,based on LED manufacturers’ test data

Housing

Clear cover

Temperature

-4℉ to 122℉(-20℃ to 50℃) operating temperature

Humidity Range

0 to 95% non-condensing

Protection

IP65

Net Weight

180g

350g

500g

670g

Note

1, diameter 15mm, 30mm, 50mm , 3D LED Vertical tube is available

2, Comparing with DMX512 protocol , if you need economic solution, we recommend SPI protocol
