DESCRIPTION:

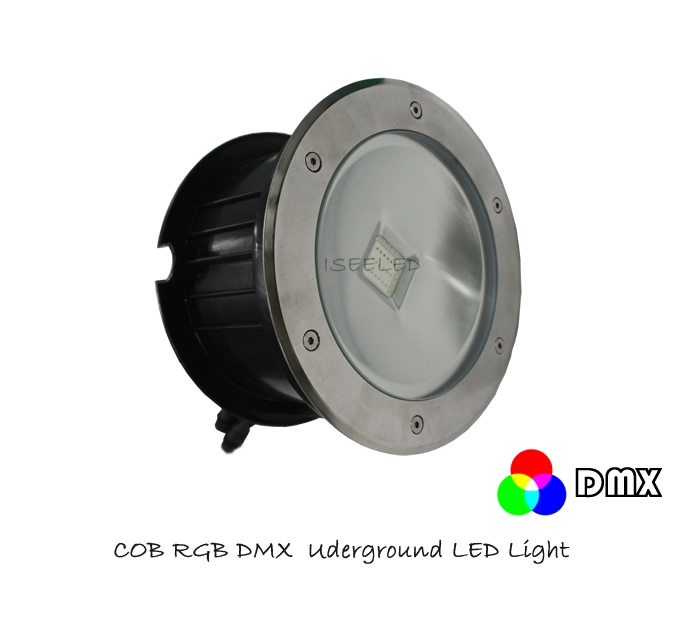

DMX Underground Light

1.Underground light adopt the die-casting aluminum body and stainless steel cover

2.Wear-resistant,  complete encapsulation, superior waterproof performance, IP68

3.RGB, Red, Green, Blue, White (2700-6500K ), Amber color

4.Standard DMX 512 control, 44 frames/second

5.DMX address can be set manual or auto-addressing

6.With working life-span at least 50,000hrs

7.Fast get through input/output signal


Application:  underground light can be used  for square  parking, hotel and so on


  • Parameters

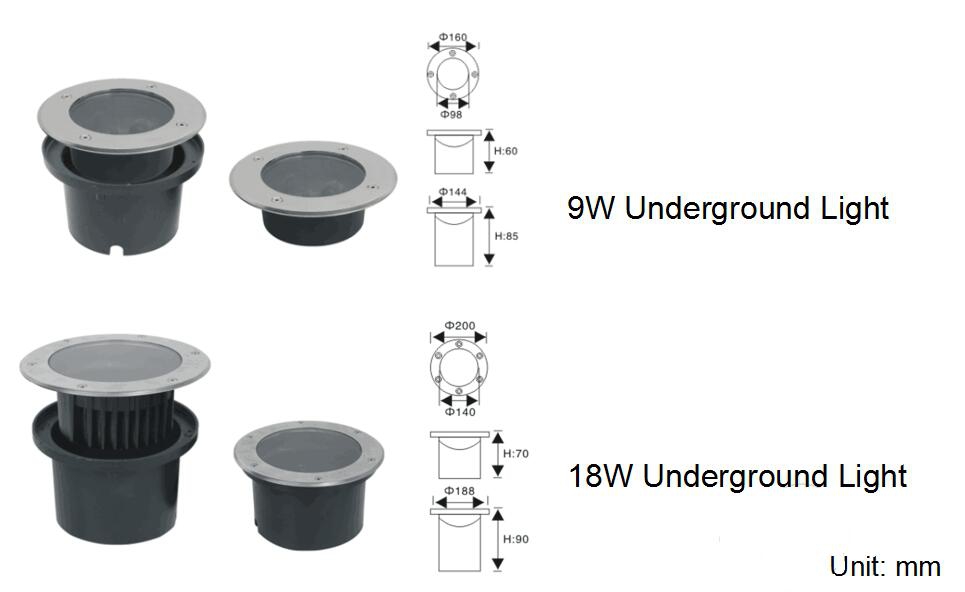

  • Dimension

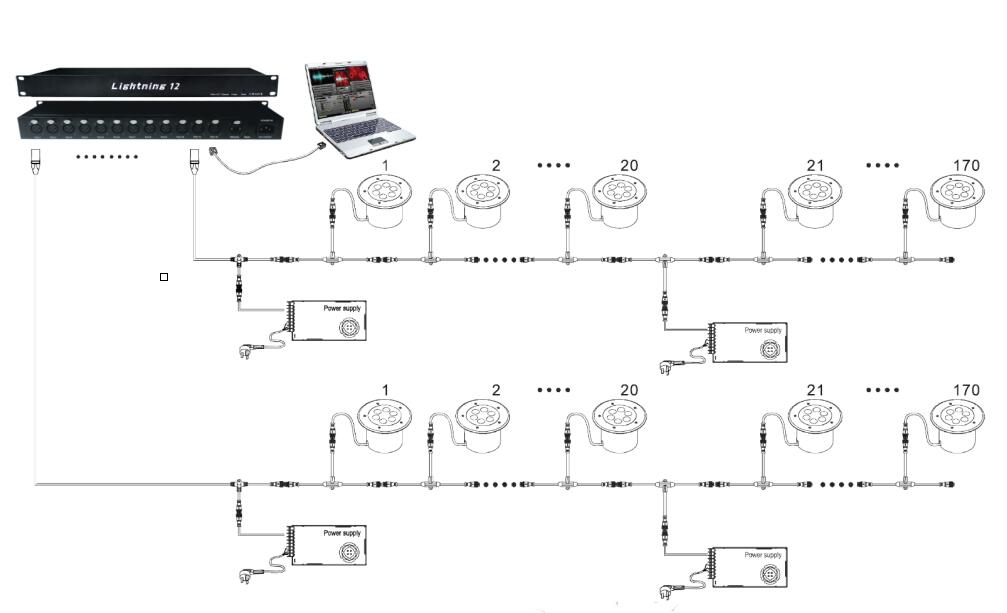

  • Diagram
  • Datasheet

Model NO.

LED- UG80DMX0101

LED- UG160DMX0301

LED- UG200DMX0601

LED- UG250DMX0901

Material

Die-casting Aluminum , Stainless Steel

Die-casting Aluminum , Stainless Steel

Die-casting Aluminum , Stainless Steel

Die-casting Aluminum , Stainless Steel

Size

Ø80mm*H60mm

Ø160mm*H60mm

Ø200mm*H70mm

Ø250mm*H75mm

Power

3W

9W

18W

27W

LED QTY(unit: PC)

1pcs

3pcs

6pcs

9pcs

Working Voltage

DC 24V

Color Range

RGB , red , green , blue , white

Beam Angle

8° ,  16 °, 25°, 30°, 45°, 60°

Address Setting

Automatically/Manually

Protocol

DMX512

Lifespan

50000 hours

Protection

IP68

Operating Temperature

-4℉ to 122℉(-20℃ to 50℃)

Storage Temperature

-40℃ ~ + 80℃
