HOME > Product > LED Controller LED Controller
DESCRIPTION:

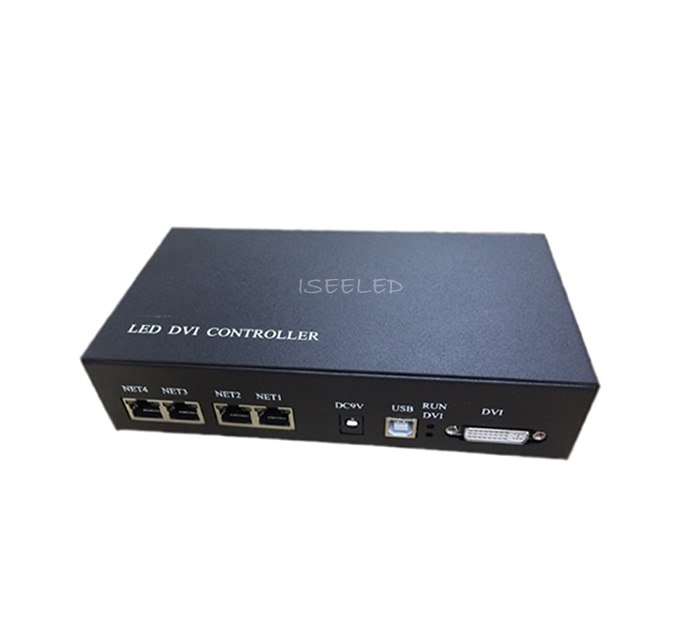

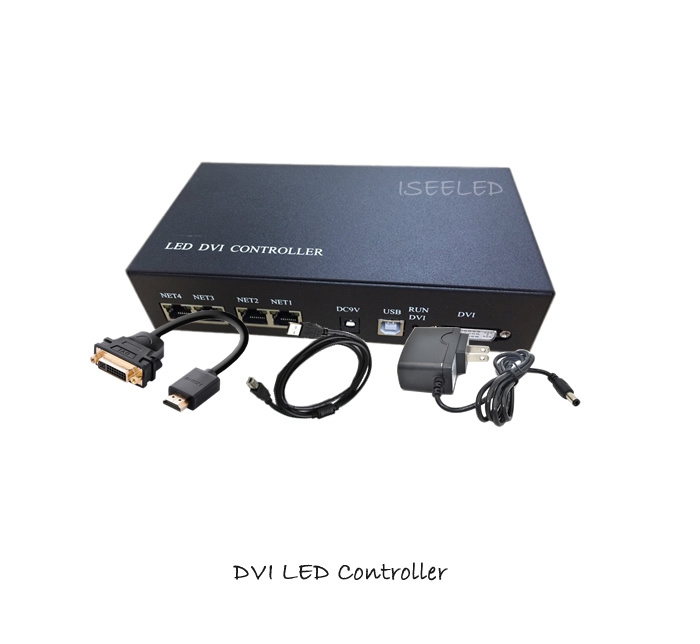

DVI LED Controller

1. Each DVI LED Controller maximum load 400,000 pixels, expend the pixels

with DVI distributor to connected with several DVI LED Controller

2. High speed transmission through DVI/HDMI interfaces.

3. Applied duplication mode when connected to computer.

4. Applied to both 32-bit and 64-bit operating systems.

5. Through Ethernet wire, Signal transmit distance upto 100M, and upto 25KM

by using photoelectric converter.

6. Support the following resolutions: 1280×1024, 1280×960, 1280×720,

1024×1024, 1024×768, and 800×600 under 60HZ frequency.

7. Support 2D Mapping

Application: Adapted for all kinds of led lighting control through DVI

  • Parameters
  • Dimension
  • Diagram
  • Datasheet

Item

Description

Name

DVI LED Controller

Slave LED Controller

Slave LED Controller

Model

LED-DVI-TV03

LED-S4

LED-S8

Input Voltage

DC9V

AC 110V / AC 220V

AC 110V / AC 220V

Power Consumption

5W

1.2W

1.2W

Control pixels

400,000 pixels,

a computer controls 2.62 million pixels

4x512ch for dmx,

3400pixels in total for SPI

8x512ch for dmx,

6800pixels in total for SPI

Net Weight

0.8Kg

1Kg

1Kg

Working Temperature

-20C°--75C°

-20C°--75C°

-20C°--75C°

Protection

IP20

IP65

IP20

Dimension

L183 x W139 x H40mm

L163 x W155 x H54mm

L183 x W139 x H40mm




DVI Controller Dimension

L183 x W139 x H40mm


Please contact our sales for the lastest version of user manual, thanks.
